Item No.: 03
TTL-232R-3V3-WE, Supports +3.3V UART signalling and +5V/75mA power output.
Buy At Alibaba

Product Information

Part Number
Chipset FT232R
Function USB to TTL Serial assembly
Cable Type UL 2464 ,24AWG
Cable Length (m) 1.8m
Connector Type A USB Type A Male

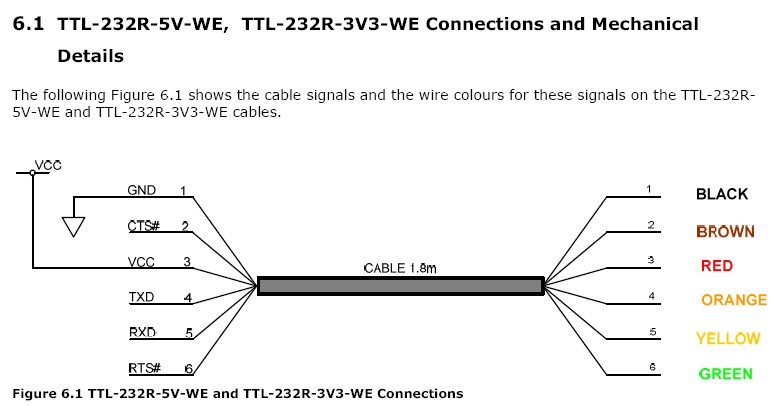

Connector Type B 6 way wire end
Color Black
RoHS Yes
CE & FCC Yes


  • Wire ended (no connector)

  • Entire USB protocol handled by the electronics in the cable USB

  • Connect directly to a microcontroller UART or I/O pins

  • UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity

  • Data transfer rates from 300baud to 3Mbaud at TTL levels

  • 3 way audio jack connector provides Tx, Rx and GND

  • Low USB bandwidth consumption

  • UHCI/OHCI/EHCI host controller compatible

  • 8 way, keyed connector to support FTDI VDRIVE2 and VMUSIC2

  • Internal EEPROM with user writeable area


  • Communications & Networking

  • Sensing & Instrumentation

  • Industrial

  • Security

  • Automotive
