TTL-232RG-VREG1V8-WE

Name: TTL-232RG-VREG1V8-WE
Brand: Shenzhen Union Electronics Co.,Ltd
Availability: InStock
Rating: 5 (1 reviews)

Part No: TTL-232RG-VREG1V8-WE
USB to TTL cable w/ Embedded Electronics, LEDs, 1.8V/100mA, Wire Ended
USB to UART cable Supports +1.8V TTL level UART signals

INQUIRY

PDF Format

Description

Part No: TTL-232RG-VREG1V8-WE

USB to TTL cable w/ Embedded Electronics, LEDs, 1.8V/100mA, Wire Ended

USB to UART cable Supports +1.8V TTL level UART signals

Data Rates: 3MBaud
USB Speed: Full Speed (12Mbps)
Interfaces: UART
USB Connector: Type A
End Connector: Wire ended
Cable Length: 1.8m
Cable Details: 6 core, 5mm UL2464 24 AWG
Packages: N/A
Channels: 1
I/O Voltage: 1.8V
USB Class: FTDI Drivers
Virtual Com Port: Yes
Max Power Output: +1.8V / 100mA
FTDI Internal IC: FT232R
Operating Temperature: -40°C to +85°C

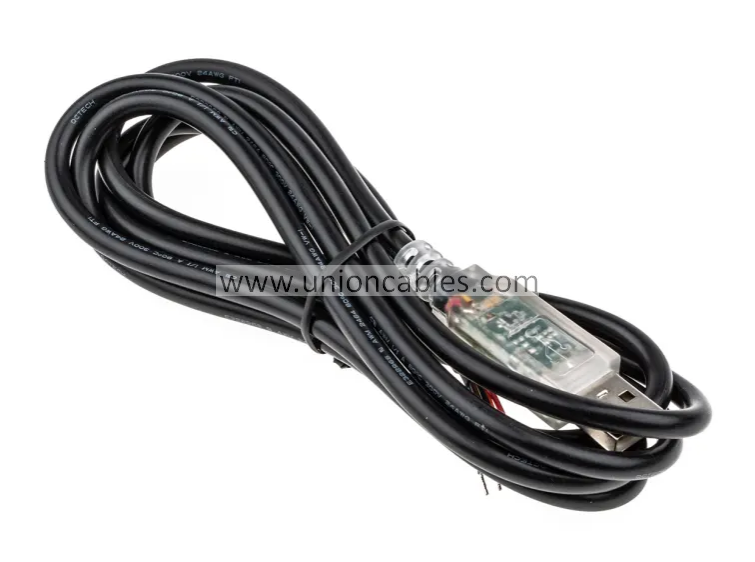

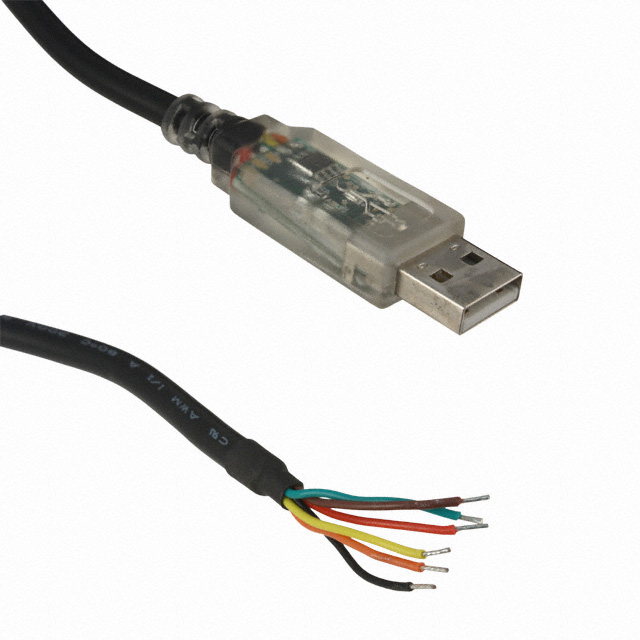

TTL-232RG-VREG1V8-WE: USB cable with wire-ended +1.8V logic level UART connections and +1.8V / 100mA rated power output.

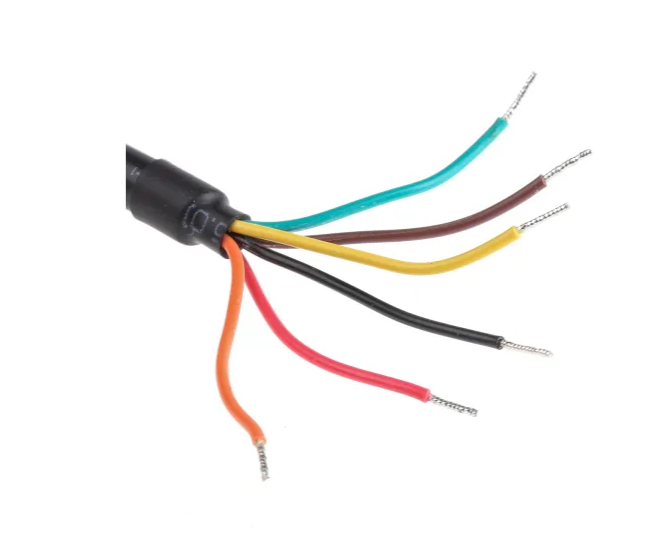

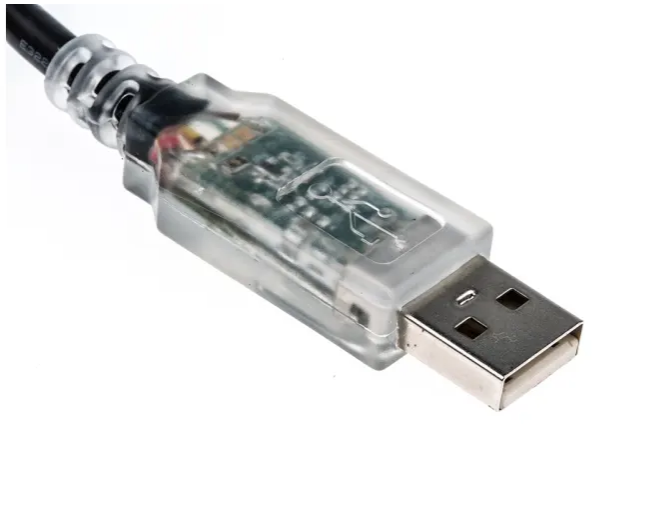

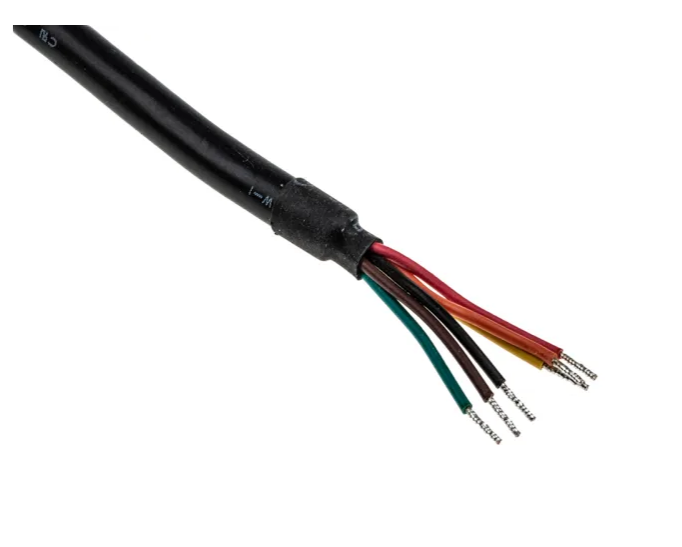

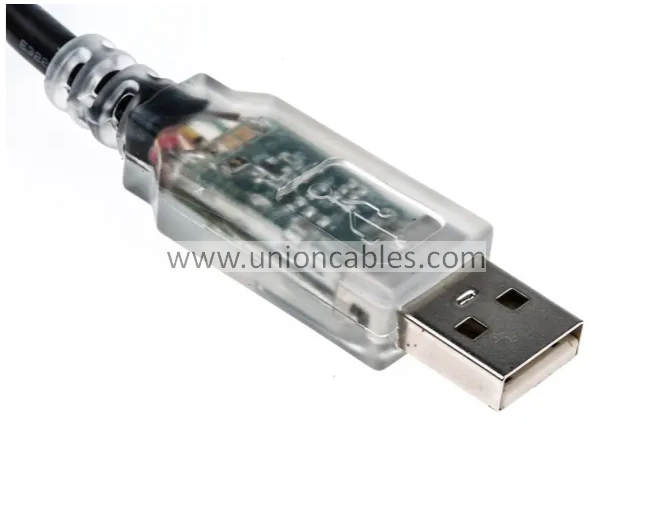

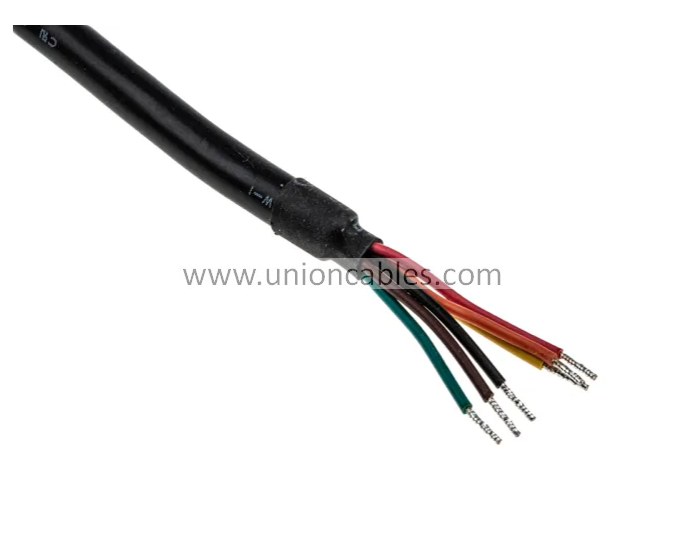

The TTL-232RG-VREG1V8-WE uses a FT232RQ IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with RXD, TXD, RTS, CTS and GND signals provided.

The TTL-232RG-VREG1V8-WE is fully RoHS compliant and is supplied loose – packed in an anti-static bag. It is CE, FCC and UKCA approved.
