Part No: USB-RS422-WE-5000-BT
USB TO RS422 WIRE END, 5M, BLACK, Transparent USB CONNECTOR
USB to RS422 serial interface cable
- Data Rates: 3MBaud
- USB Speed: Full Speed (12Mbps)
- Interfaces: UART
- USB Connector: Type A
- End Connector: Wire ended
- Cable Length: 5m
- Cable Details: 9 core, 5mm UL2464 28 AWG

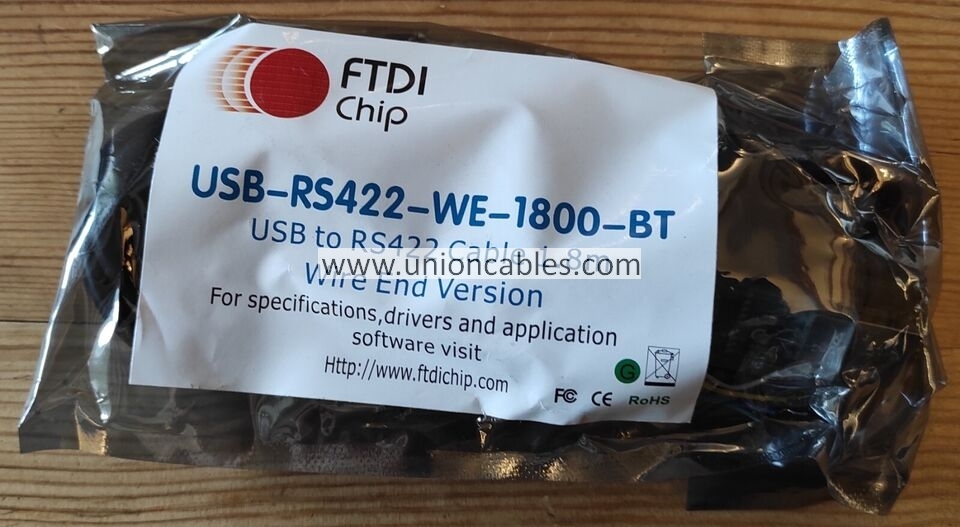

- Packages: ESD Bag
- Channels: 1
- I/O Voltage: RS422
- USB Class: FTDI Drivers
- Virtual Com Port: Yes
- Max Power Output: -
- FTDI Internal IC: FT232R
- Operating Temperature: -40°C to +85°C

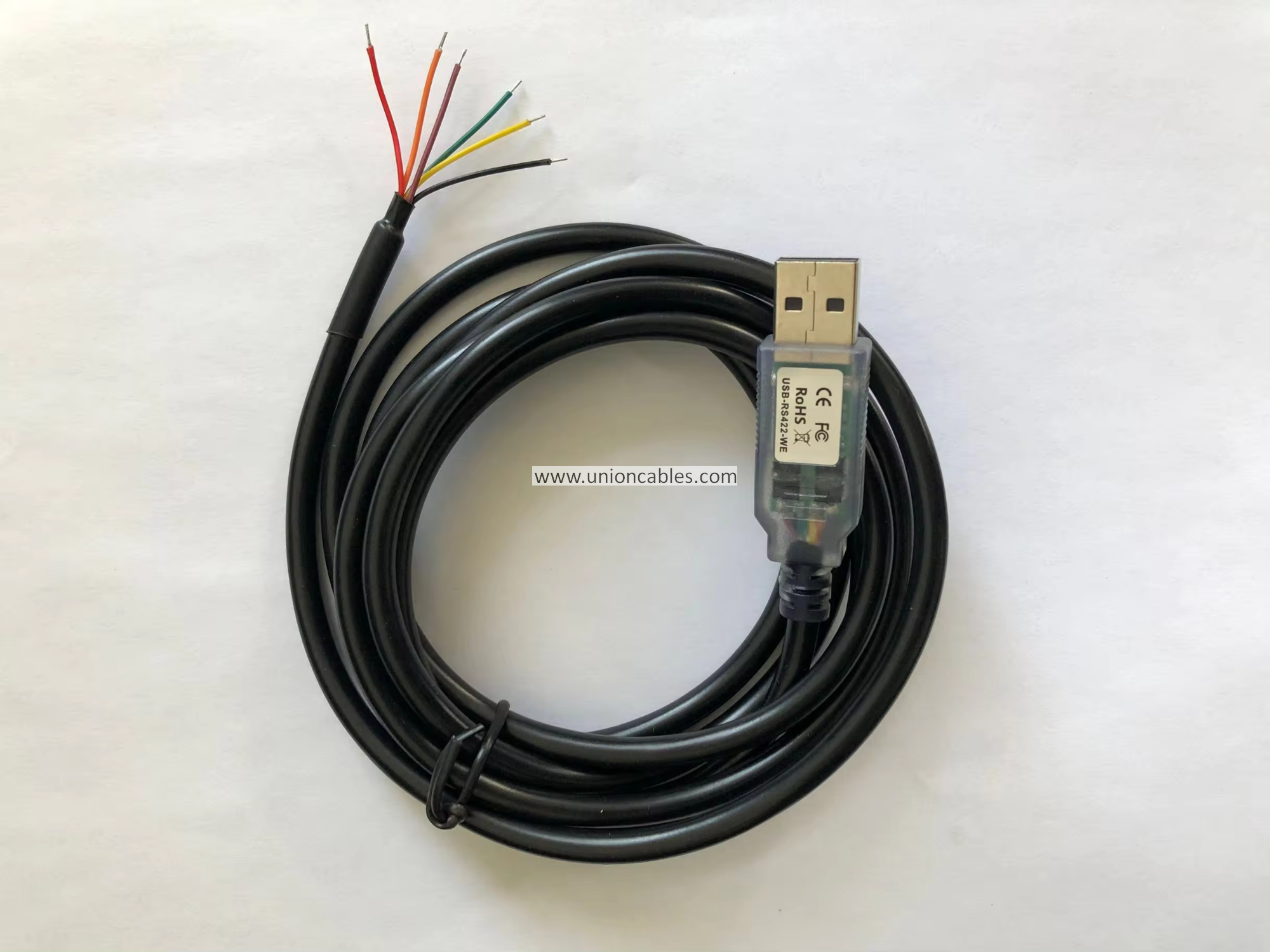

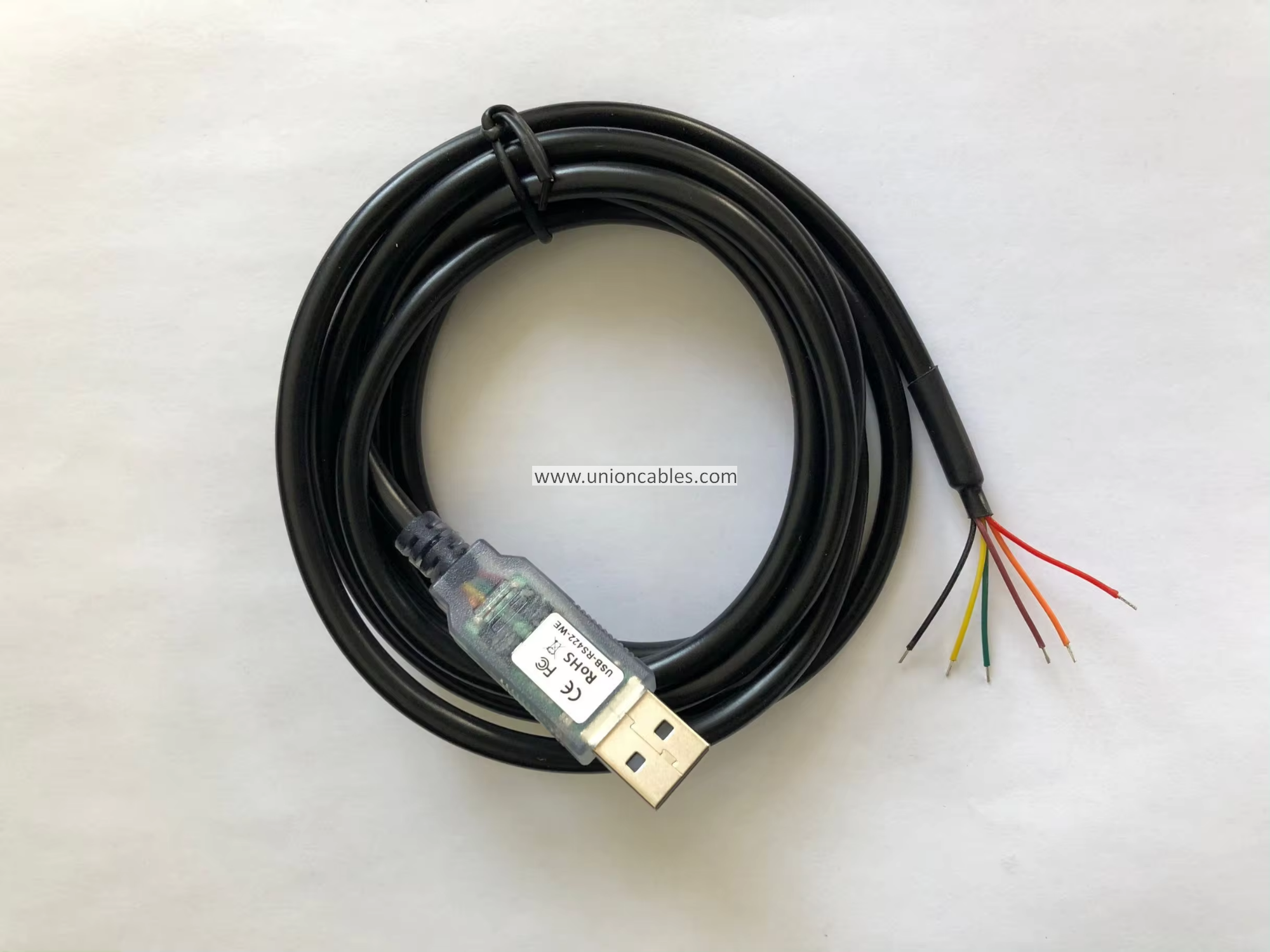

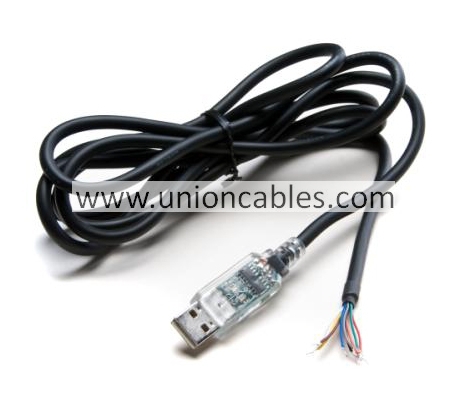

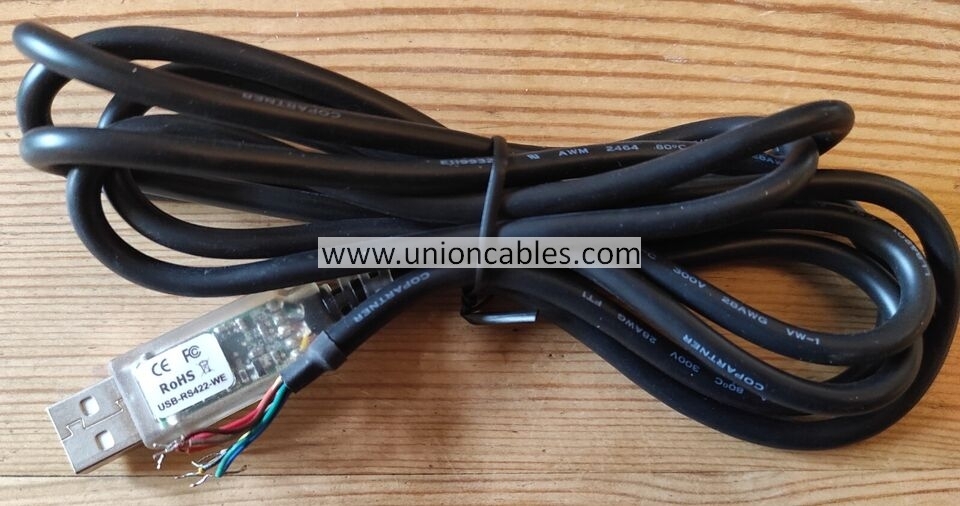

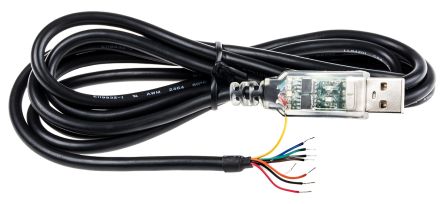

The USB-RS422-WE-5000-BT is a 5m long USB to RS422 converter cable.
Using the FT232R chip combined with an RS422 level converter, the cable is a CE and FCC approved product which is one of the simplest USB – RS422 solutions around.

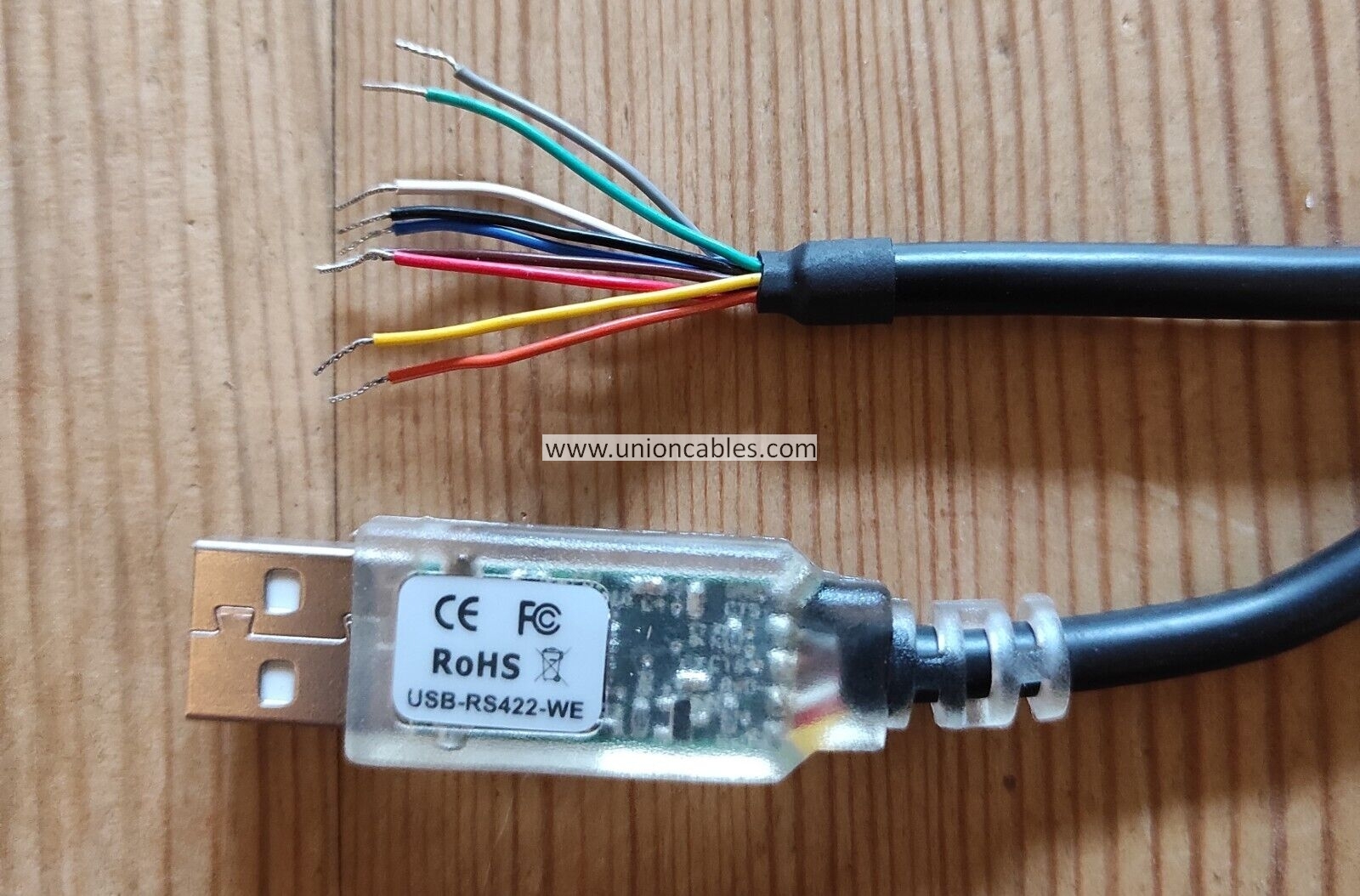

Powered from the USB port, the RS422 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.
The cable can be used with FTDI’s drivers to provide a virtual COM port on a PC which is capable of communication rates with RS422 units from 300 baud up to 3 MBaud.

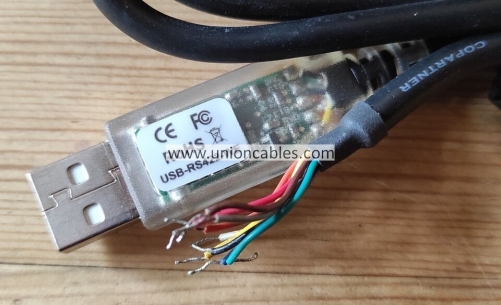

Data RX and TX LEDs visible through transparent moulding
cable colour : black
 |
USB-RS422 Converter Cables |
|
|
The USB-RS422 cable is a USB to RS422 levels serial UART converter cable incorporating FTDI’s FT232RL USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS422 interface to USB.
Each USB-RS422 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS422 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable (if transparent USB connector mould specified). The other end of the cable is bare, tinned wire ended connections by default, but can be customised using different connectors to support various applications.
Cables are FCC, CE, RoHS compliant.
|
|


|
